Baffle Filter-Model A1
The product parameters

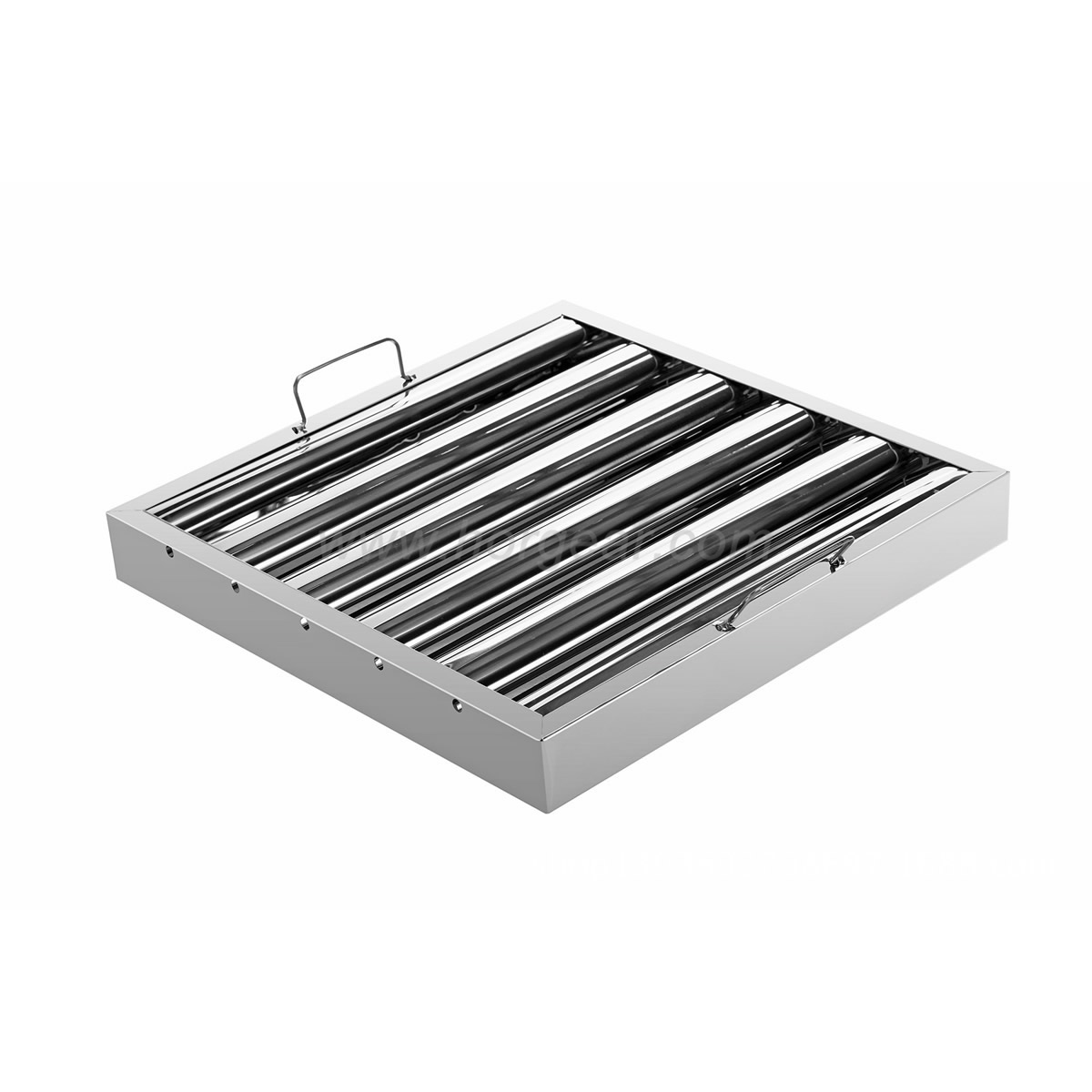

Products Name: Stainless Steel Grease Filter
Other products names：Stainless Steel Canopy Filter/Baffle Filter/Grease Filter/Grease Baffle Filter/Kitchen Grease Filter/Range Hood Filter/Carrasteel Grease baffle filter;
Type: Range Hood Parts
Handles: with or W/O
Material: stainless steel , Stainless iron,and If you need we can be replaced with aluminum
Filtering Capacity: 1.8m3/Sec by unit of 50x50cm
Size: options available
Packaging Detail: One polybag per 10 pcs in a strong carton-box with further safe-plastic-bag protection/ 20~30 boxes on each pallet/ covering with moisture-proofing film/ and finally belt fixed for strong protection.
Place of Origin：Ningbo Zhejiang China (Mainland)
Port:NINGBO
Supply Ability:10000 Pieces per Month
Of course we can make as per your requirements.
Hood filters other models accept custom, welcomed the order.

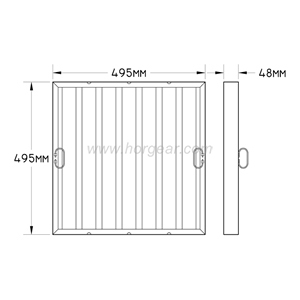

| Size(H*W) | Dimension(H*W) | Material |
| 15.3” *15.3”*1.9” | 390*390*48mm | 201 Grade SS |
| 304 Grade SS | ||
| 430 Grade SS | ||
| 15.5”*15.5”*1.9” | 395*395*48mm | 201 Grade SS |
| 304 Grade SS | ||
| 430 Grade SS | ||
| 15.5”*19.5”*1.9” | 395*495*48mm | 201 Grade SS |
| 304 Grade SS | ||
| 430 Grade SS | ||
| 19.3”*19.3”*1.9” | 490*490*48mm | 201 Grade SS |
| 304 Grade SS | ||
| 430 Grade SS | ||
| 19.3”*15.3”*1.9” | 490*390*48mm | 201 Grade SS |
| 304 Grade SS | ||
| 430 Grade SS | ||
| 19.5”*19.5”*1.9” | 495*495*48mm | 201 Grade SS |
| 304 Grade SS | ||
| 430 Grade SS | ||
| 19.5”*15.5”*1.9” | 495*395*48mm | 201 Grade SS |
| 304 Grade SS | ||
| 430 Grade SS | ||
| 18”*18”*1.9” | 445*445*48mm | 201 Grade SS |
| 304 Grade SS | ||
| 430 Grade SS |
Commercial smoke lampblack machine to the baffle type lampblack machine filter suitable for Europe and the United States.
This product is very popular in Europe, South America, the Middle East and other places, our this product exported to England, Spain, Germany, Chile, Columbia, Malaysia, Dubai and so on.
Quality and performance

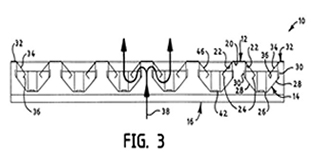

Unlike other grease filters that trap and hold the grease until cleaned, these quality stainless steel baffle filters cause the air to change direction which catches the grease partials. The grease then runs down the blades through a drain hole and into the gutter of the kitchen exhaust hood. This method of grease filtration gives 100% flame barrier protection, stopping extreme fire from entering into the exhaust hood, roof ducting etc., creating further damage to the building. Fabricated completely in a quality gauge stainless steel, with an attractive no4 finish, these filters are very easy to maintain and clean on site saving costs on filter exchange services. They will handle all cleaning products without discolouring and will outlive all other types of exhaust hood grease filters.
Advantages of Stainless Steel Baffle Filters
1.No energy consumption, low cost; Low maintenance easy to clean
2.Stable Quality & High Performance; Outlive any other type of grease filter
3.High-Temp Endurance; Fire free; 100% flame barrier in a case of fire
4.Easy Installation
5.Vane design prevents grease from dripping-food,utensils and burner surfaces remain clean
